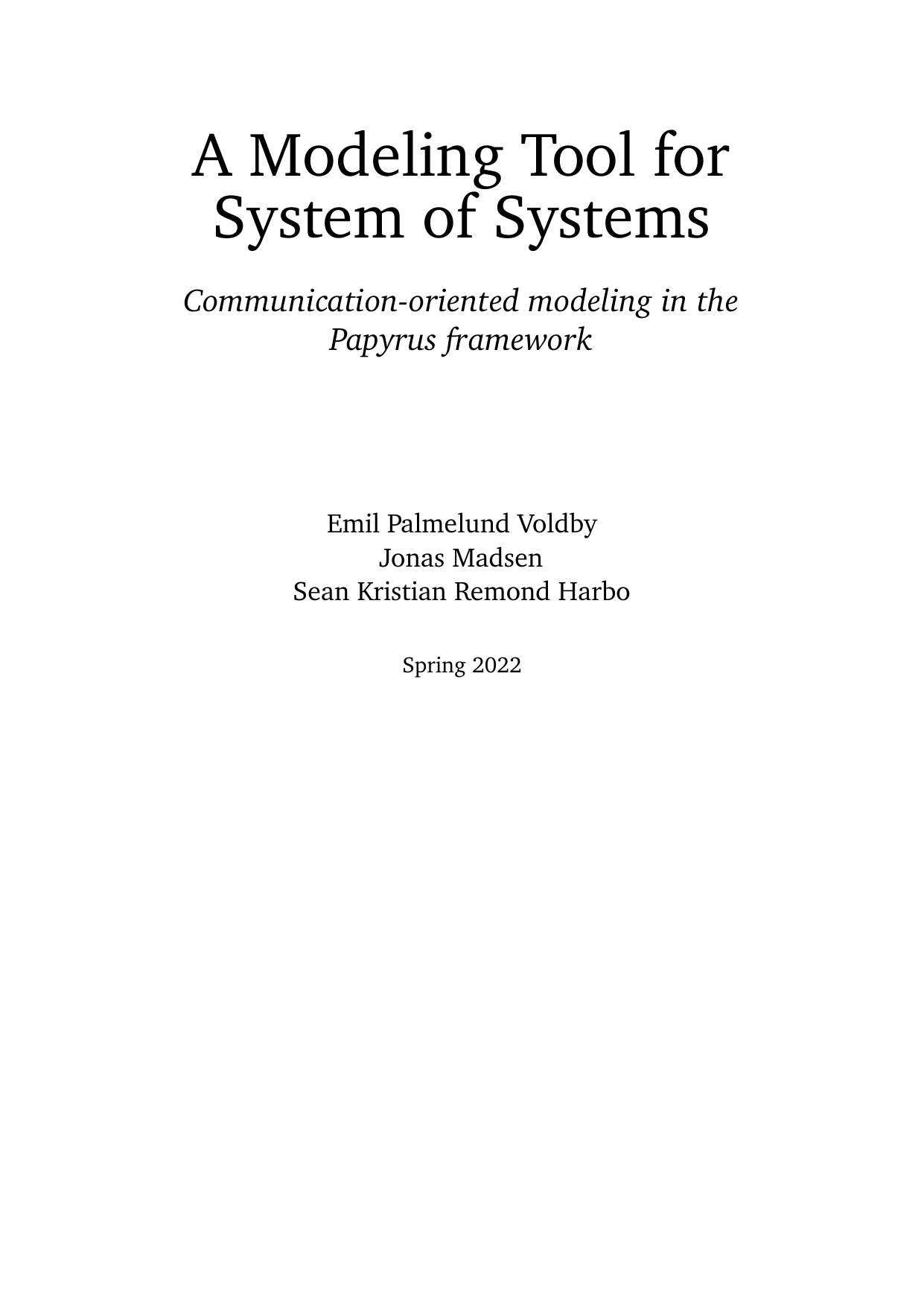

A Modeling Tool for System of Systems: Communication-oriented modeling in the Papyrus framework

Translated title

A Modeling Tool for System of Systems

Authors

; ;

Term

4. term

Education

Software, Master

Publication year

2022

Submitted on

Pages

146

Abstract

This report presents a Domain-Specific Modeling Language for System of Systems called "Abstract Communicating Systems". We give formal syntax and semantics for the modeling language. We provide a mapping to UML using a UML Profile diagram and create an Integrated Development Environment tool using Eclipse and Papyrus. We provide the source code freely. We perform a qualitative usability test using the tool on three domain experts, they rate the tool an average of 8/10 even though the tool still has some issues. A Journal documents the process and we reflect on the process and product. The main contribution is the realization of a new approach to System of Systems modeling.

Keywords

Papyrus ; Eclipse ; Modeling ; Systems of Systems ; ACS ; Abstract Communicating Systems ; Distributed Systems ; DSML ; UML ; UML Profile ; Metamodeling ; Verification
